How to get your Di2 bike ready to ride
Electronic Shimano Di2 gears must be connected to the battery and charged during initial assembly.
11-speed and 12-speed drivetrains differ in their structure.
We explain both procedures in this short tutorial.
Tools
You need
- Di2 plug tool
- Torque wrench
;BackgroundColor=ffffff)
Erinomaiset arvostelut!
SHIMANO

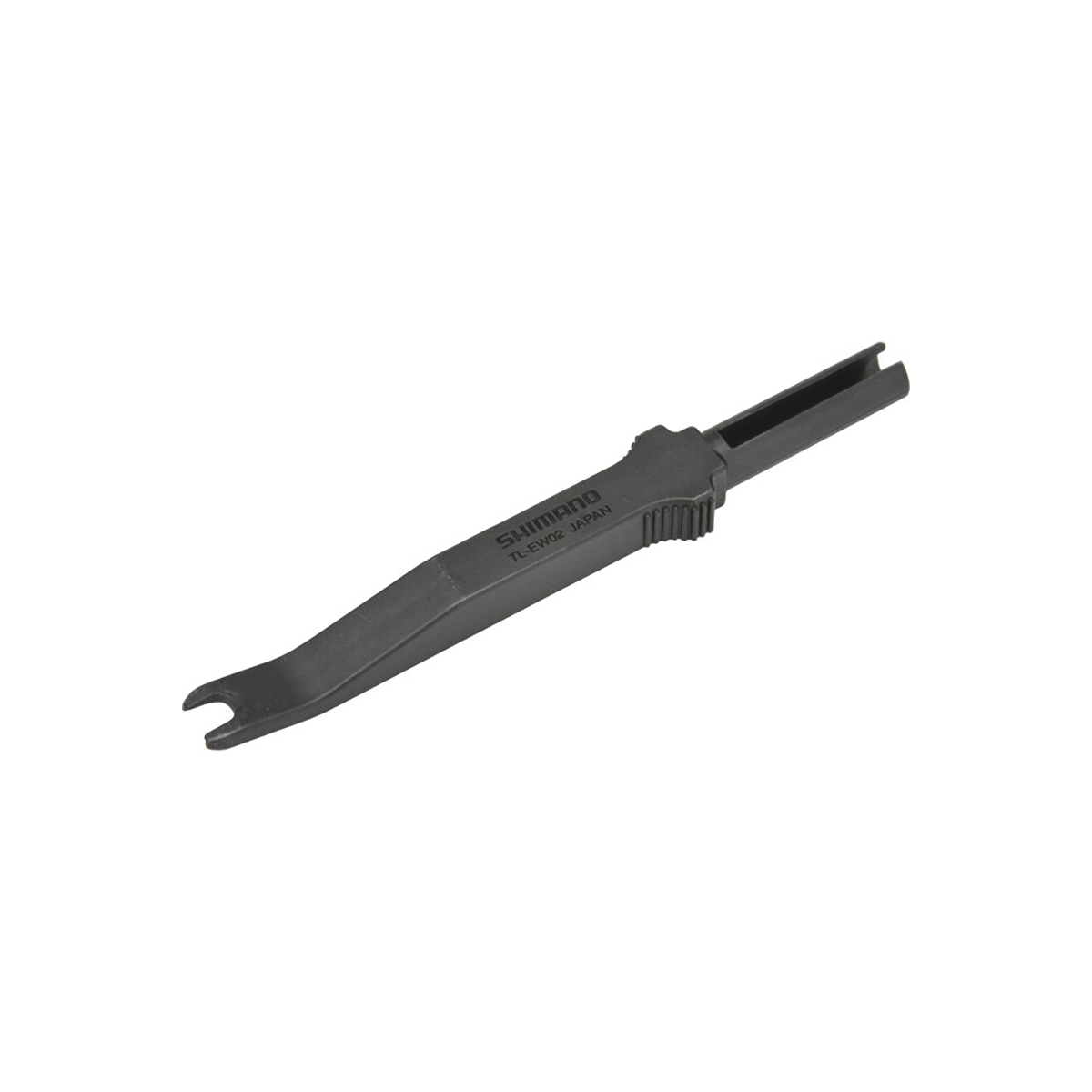

Di2 plug tool TL-EW02
OVH
5,95 €
3,07 €
;BackgroundColor=ffffff)
Erinomaiset arvostelut!
ROSE
2-24 NM torque wrench set
47,88 €
Best price in 30 days*:
47,88 €
(0%)
;BackgroundColor=ffffff)
Erinomaiset arvostelut!
ROSE
hex key set
12,45 €
;BackgroundColor=ffffff)
Erinomaiset arvostelut!
ROSE
ALL2GETHER Toolbox
52,05 €
;BackgroundColor=ffffff)
Erinomaiset arvostelut!
ROSE
CYCLE YOUR WAY T-9 Mini Tool
6,20 €
)
)
Step 1: Connecting the battery

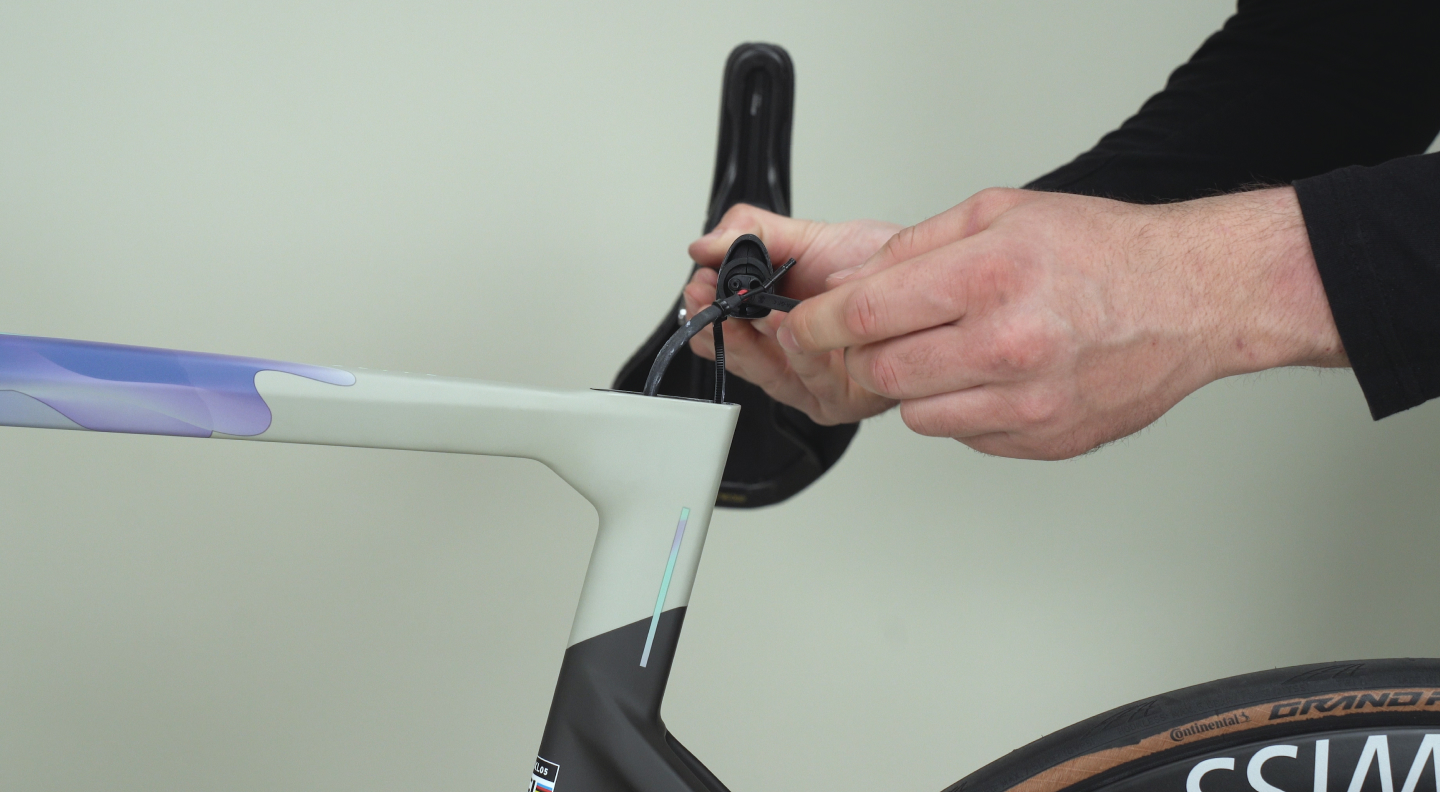

- The battery is located in the seat post for Di2 gears and must be connected with a cable (11-speed) or two cables (12-speed) in the seat tube.

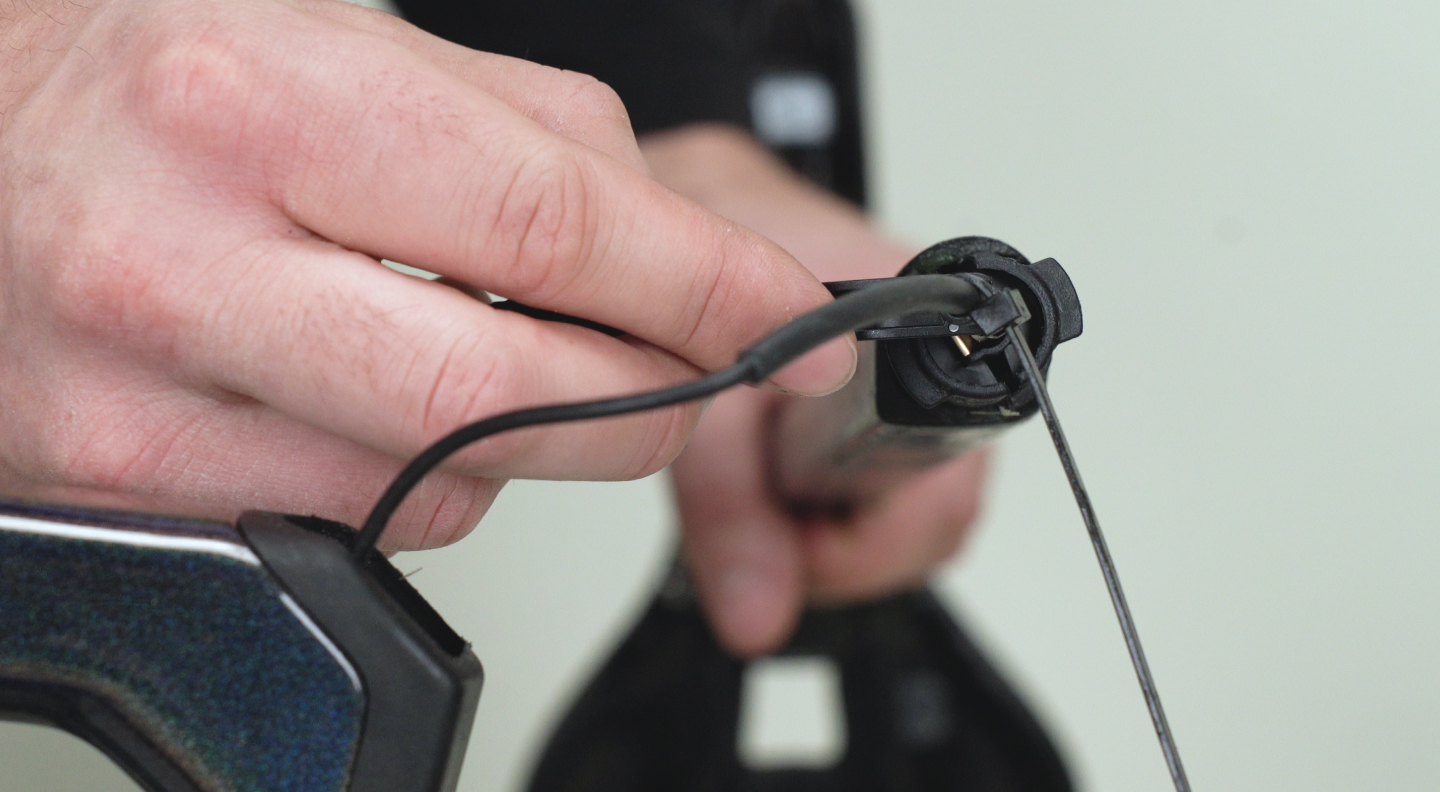

- To do this, attach the Di2 tool to the plug head and insert it into the holder on the Di2 battery. If there are two plugs, note the coloured marking.
- Repeat this process with the second plug for 12-speed gears. Note that the centre port of the battery must always be occupied. Then remove the Di2 tool.
)
)
Step 2: Fitting the seat post

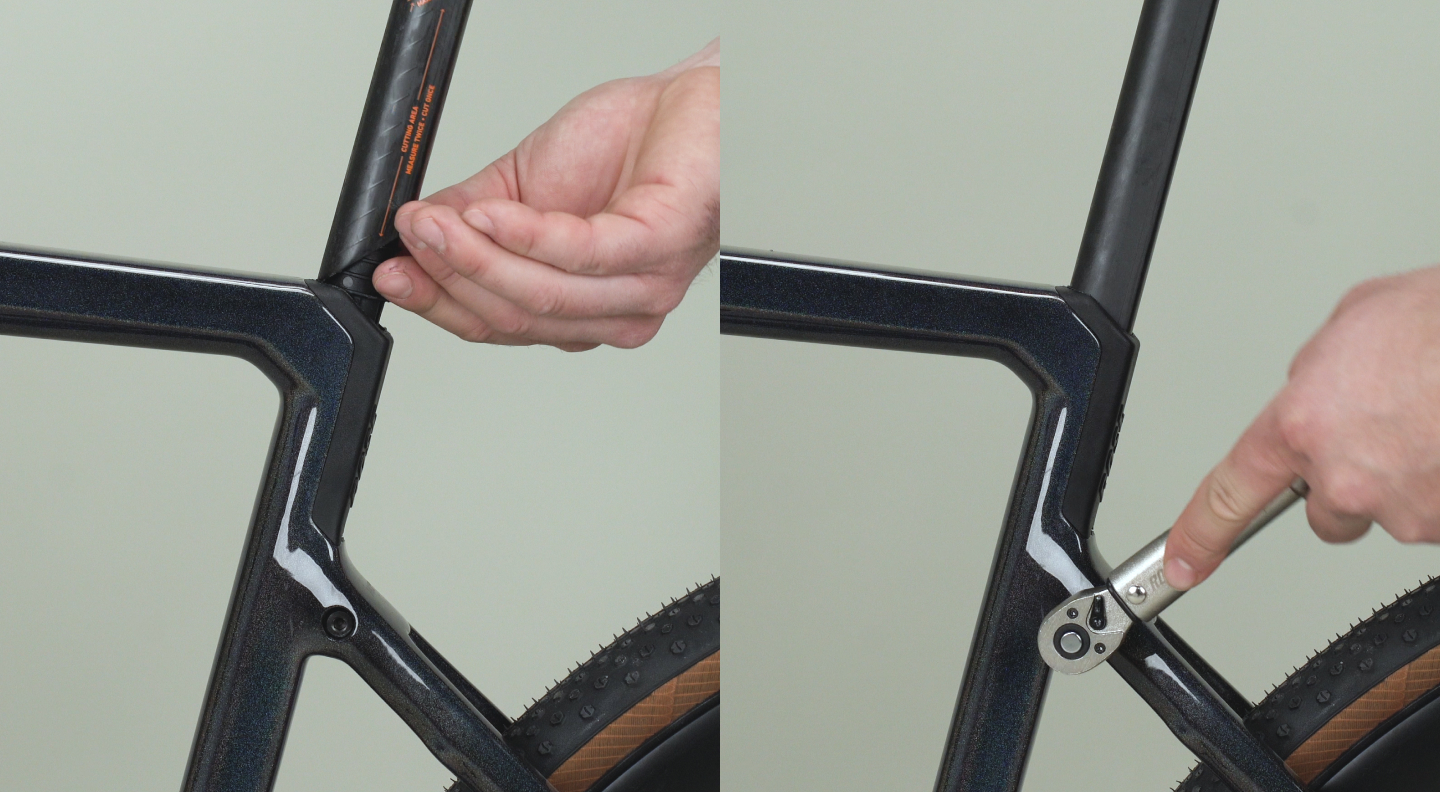

- Slide the seat post into the seat tube. Make sure that the zip tie is not pinched in the process.
- Position the seat post at the correct seat height and secure it using the clamp bolt.
- Finally, tighten the screw to the required torque using the torque spanner.
)
)
Step 3: Charging the battery

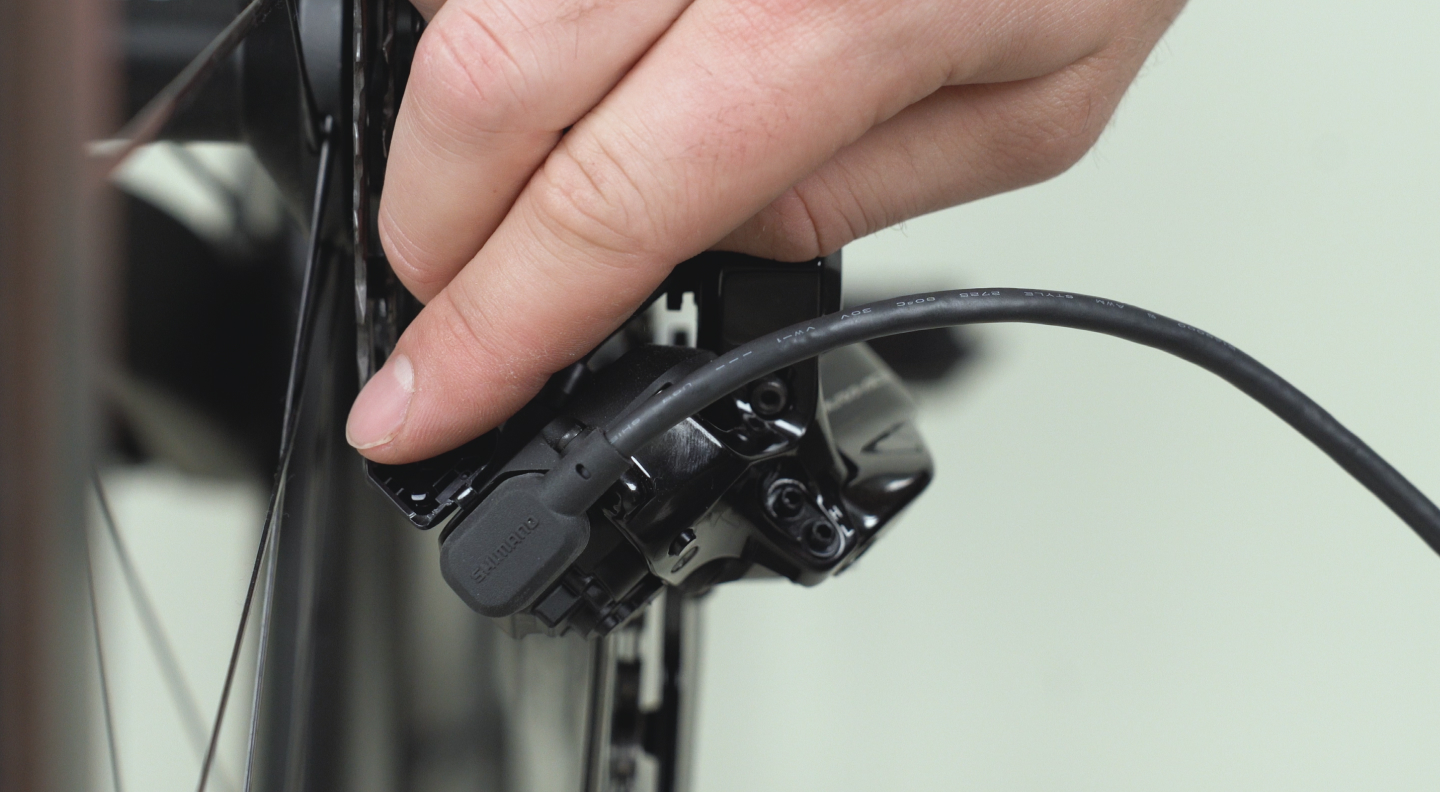

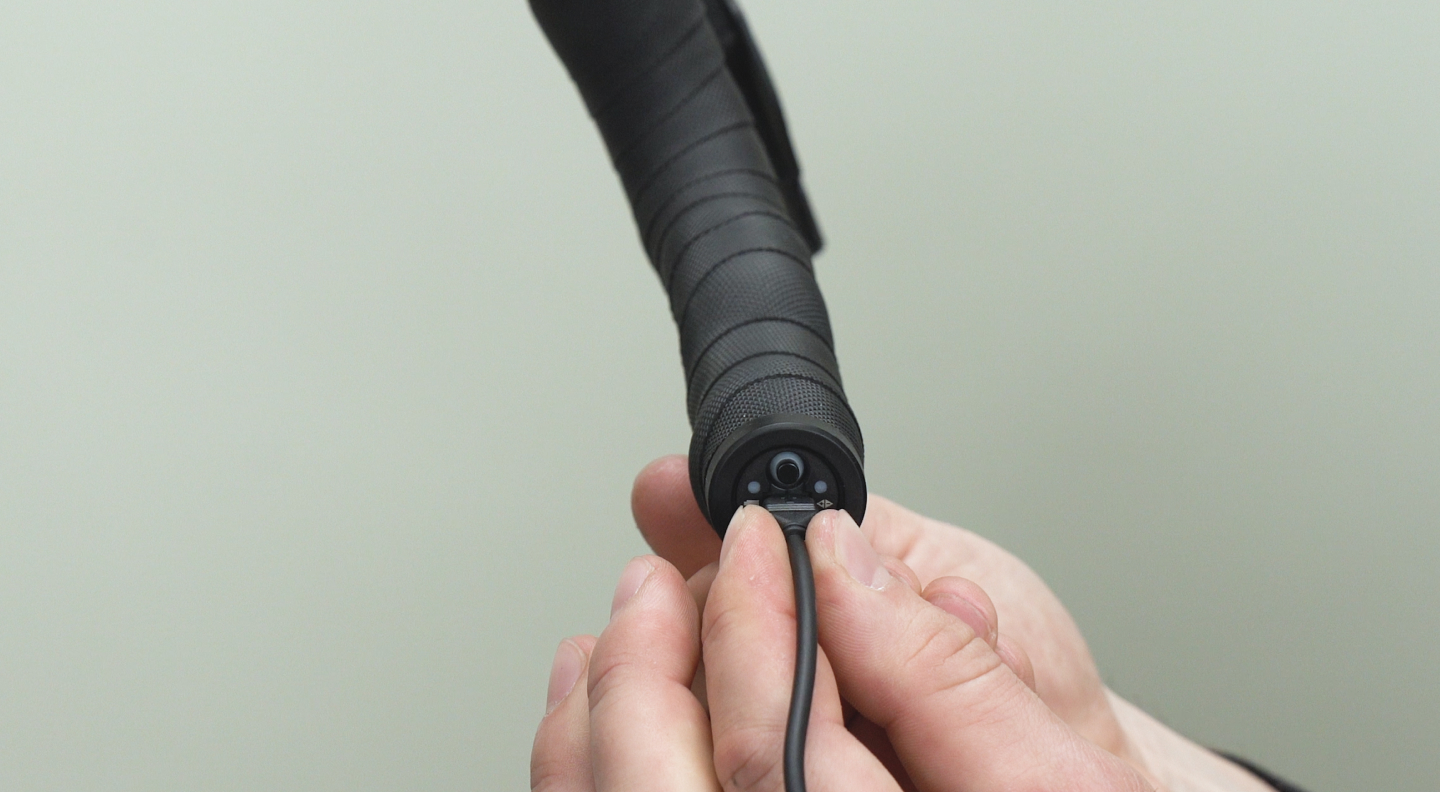

- Remove the protective plug from the charging port at the end of the handlebar (11-speed) or rear derailleur (12-speed).
- Connect the charging cable to the charging port and plug the mains plug into a socket.
- The charging process begins and is signalled by coloured LEDs on the power supply unit as well as the rear derailleur and handlebar plugs.
- Allow the battery to charge fully and do not forget to place the protective plug on the charging port after disconnecting the mains adapter.
