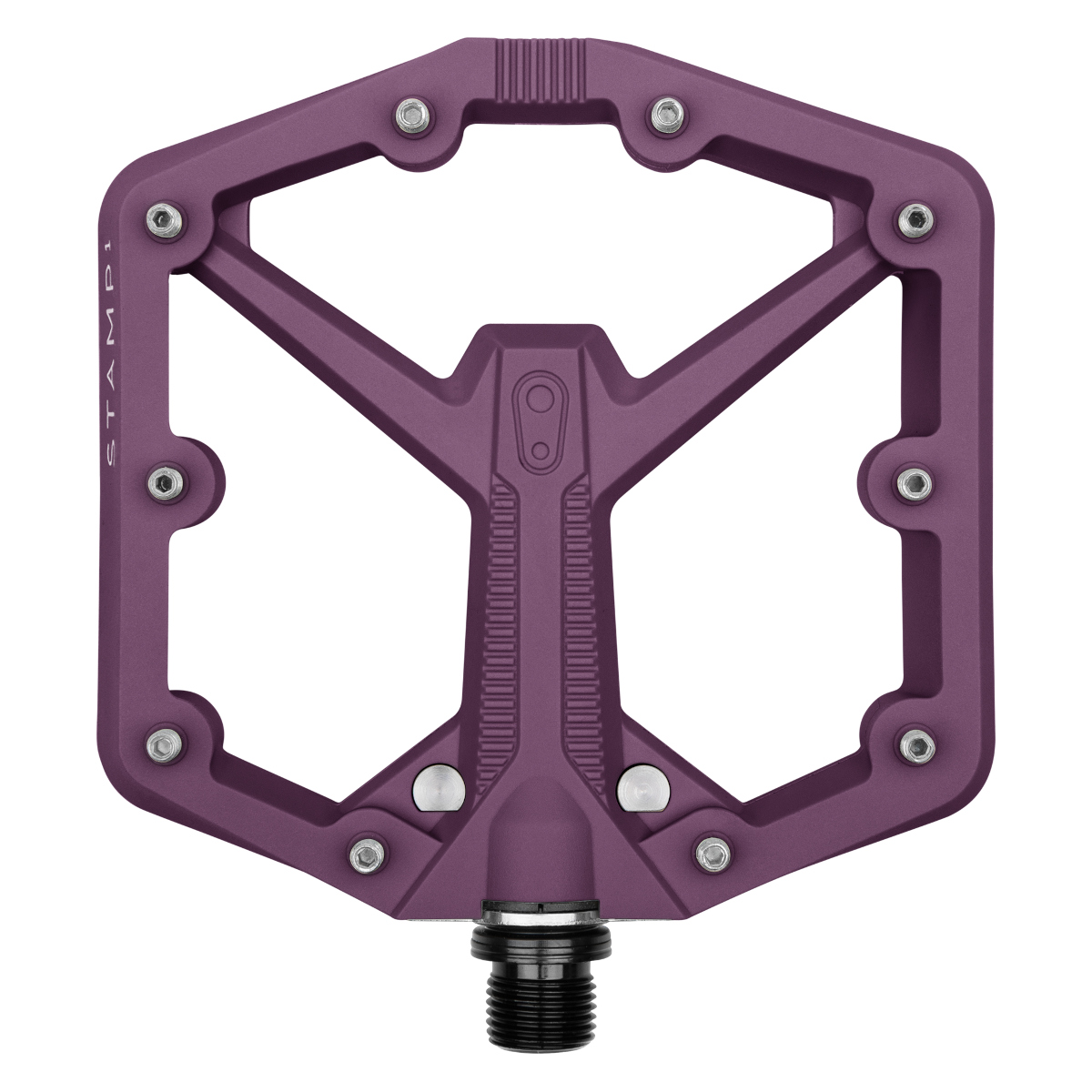

More grip, more pins, more concavity. The 2nd generation of the proven Stamp 1 MTB pedals from CrankBrothers features fundamental changes in pedal structure and profile. The pedal shape is now concave for even better grip, optimal power transfer and a secure stand in every situation. 10 pins per side of the lightweight composite flat pedal drill into the shoe sole. The Y-shaped axle connection to the flat pedal body saves material and thus weight. This can also be found in a similar design on the other CrankBrothers Stamp light alloy models.
It is made possible by the reinforced composite material, which scores points not only for its resistance but also for its low weight and low stack height above the axle. A selection of modern colours allows you to add stylish accents to your bike. When it comes to its bearings, too, the 2nd generation of the Stamp 1 is in no way inferior to its high-end siblings in the CrankBrothers product range. The external cartridge bearings are also made by the premium manufacturer Enduro Bearings. They are protected reliably from dirt and moisture by a combination of external and double internal seals. 10 adjustable pins on each pedal side and two pedal sizes with a platform that is adapted to different shoe sizes ensure maximum grip on rough trails.
Details:
• Intended use: Enduro / All-Mountain / Downhill
• Flat, concave pedal profile
• Bevelled pedal edges
• Each side with 10 adjustable / exchangeable pins
• Lightweight pedal body made of composite material
• Forged scm 435 Cro-Mo spindle
• Enduro Bearings cartridge bearings (outside), DU IGUS LL sleeve bearings (inside)
• External and double internal seal protects against dirt and moisture
Small version:
• Platform dimensions (LxW): approx. 100 x 100 mm
• Recommended shoe size: 35-43
• 20 pins (per pedal)

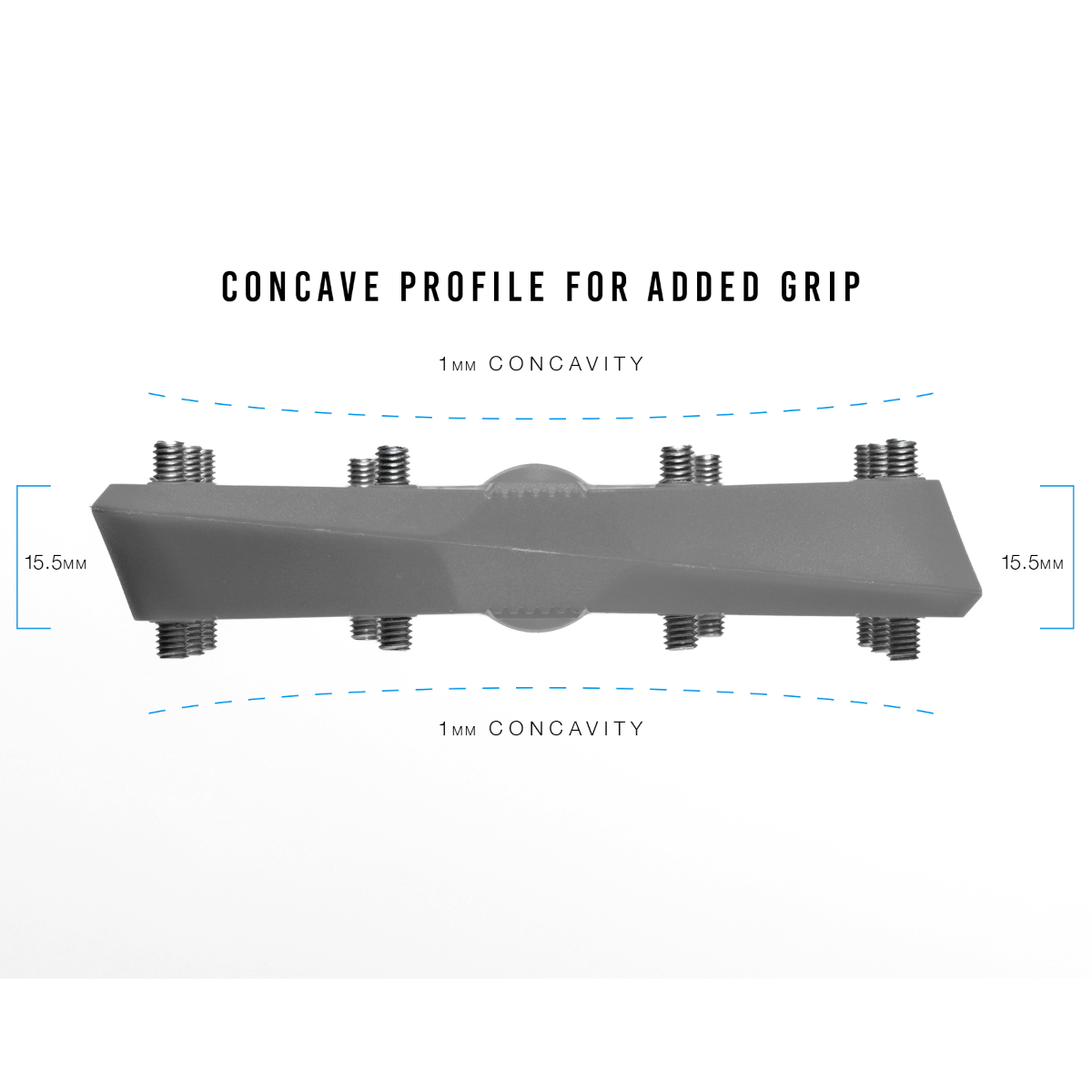

• 15.5 / 13.5 mm flat (1 mm concavity on both sides)
• Weight: approx. 321 g (pair)
Large version:
• Platform dimensions (LxW): approx. 114 x 111 mm
• Recommended shoe size: 43-49
• 20 pins (per pedal)
• 15.5 / 13.5 mm flat
• Weight: approx. 348 g (pair)
In the box:
• 1 pair of CrankBrothers Stamp 1 pedals 2nd generation
Note:
Shoes with unsuitable soles (e.g. leather soles, running shoes) may get damaged by the pedal pins.
- Manufacturer`s ref.:
- 16816
- GTIN:
- 641300168160
