Litemove AC-210 CT1 E-bike Headlight with High Beam Function incl. X-Connect Adapter

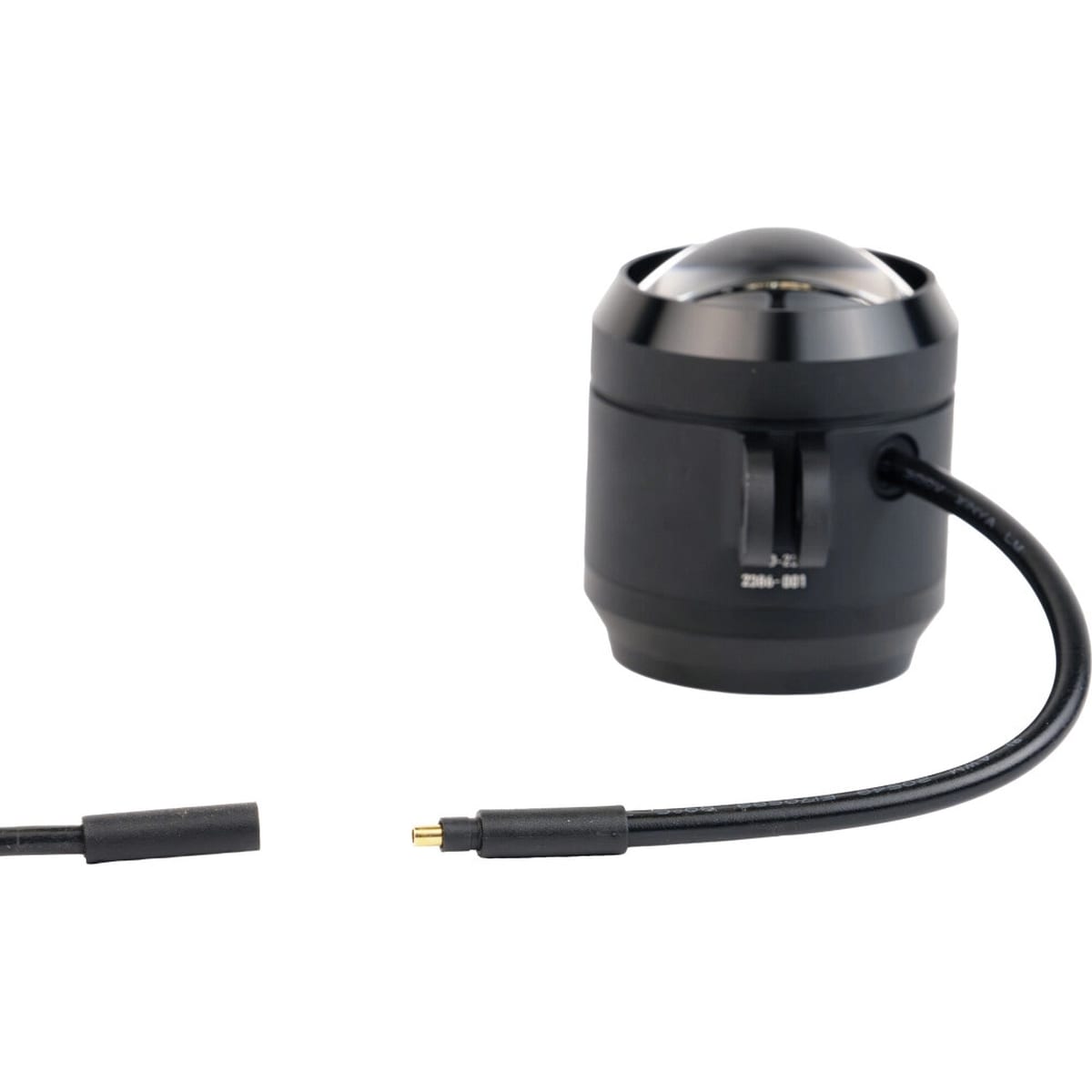

The Litemove AC-210 CT1 is a powerful e-bike front light which is connected via the CT1 plug or using the X-Connect adapter.

In addition to the 140 lux low beam, the AC-210 offers a switchable high beam with a lighting power of up to 210 lux. The AC-210 also has a wired control element on the handlebars to control the high beam.

This means that the headlight ensures excellent visibility even on completely dark roads and enables anticipatory riding. The light width of up to 10.5 metres in combination with homogeneous light distribution ensures a perfect overview and safe orientation on the trail.

Details:
• Powerful e-bike front light
• Suitable for e-bikes with CT1 connection or X-Connect

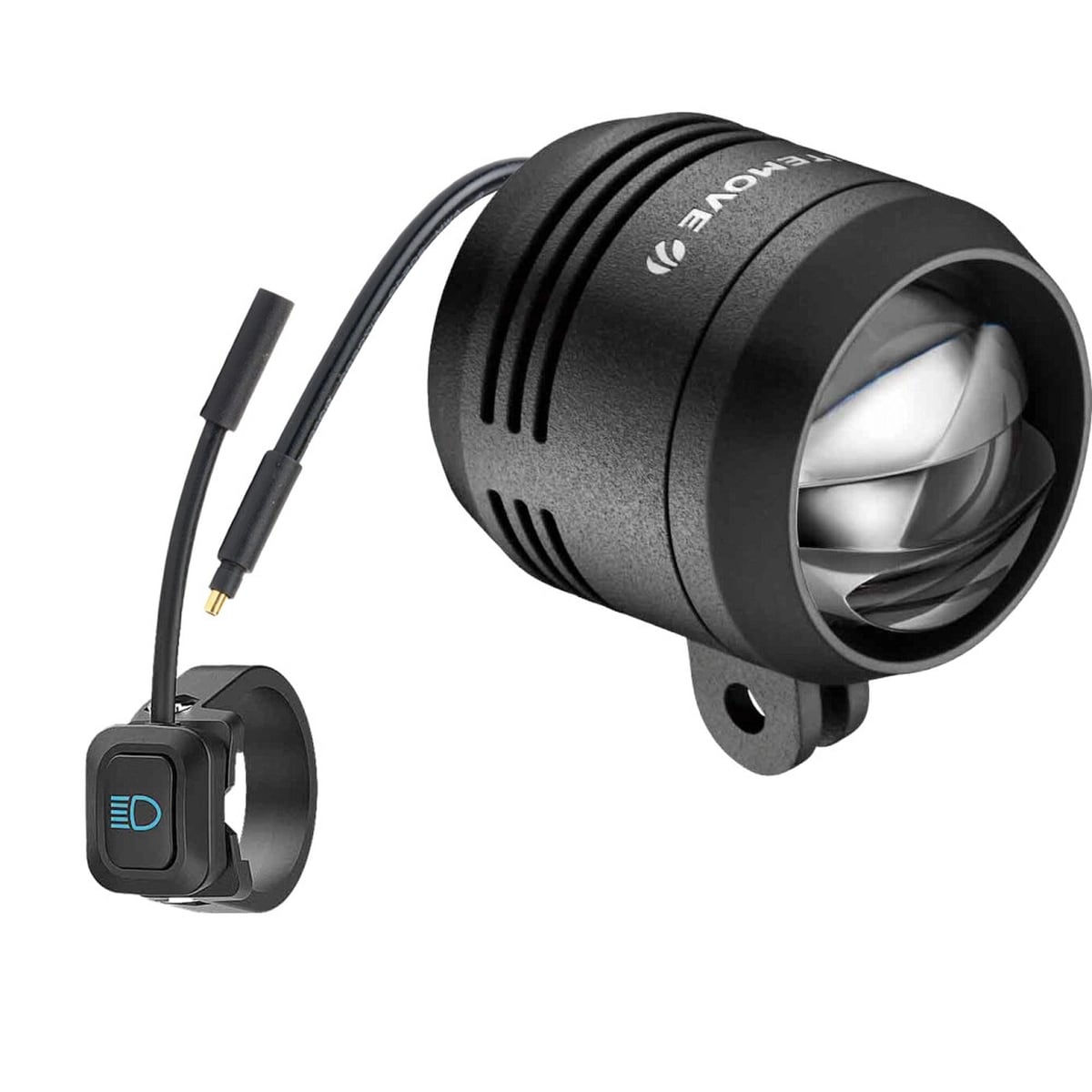

• Including remote to control the high beam
• Homogeneous and wide low beam with up to 140 lux lighting power
• High beam can be switched on with up to 210 lux (handlebar switch)
• MTi-PLUS lens for even light distribution
• Lighting width of up to 10.5 m
• Aluminium housing for excellent cooling and high durability
• Approved for all e-bikes limited to 25 km/h according to German road traffic regulations StVZO

Technical details:
• Material: aluminium, plastic
• Clamp diameter handlebar switch: Ø 22.2 mm
• Power supply: 12 V DC direct voltage (11 V - 16V )
• Power consumption: 10 W (low beam), 16 W (high beam)
• Illuminant: LED
• Lighting power: up to 140 lux (low beam), up to 210 lux (high beam)
• Light modes: dipped beam, full beam
• Protection category: IP 56 (dust- and waterproof)
• Dimensions: approx. Ø 46 x 52 mm
• Cable length: approx. 150 mm (power connection), approx. 300 mm (handlebar switch connection cable)
• Weight: approx. 128 g

In the box:
• 1 LITEMOVE AC-210 CT1 e-bike front light
• 1 LITEMOVE high beam switch incl. connection cable
• 1 LITEMOVE CT1 to X-Connect adapter cable


Note:
A mount is not included.
ONLY suitable for e-bikes with CT1 or X-Connect connection.

Compatible holders at Rose:
• LITEMOVE universal fork mount (prod. code: 1670540101)
• LITEMOVE headlight handlebar mount universal (prod. code: 1612230001)

Note:
The front light is compatible with a direct current power source (DC) of 11 to 16 volts. Some e-bikes can provide this, but NOT all do!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!


Manufacturer: Litemove, No. 198, Fuya Road, Taichung 40762 , Taiwan, , www.lite-move.com
Responsible person: Litemove Europe c/o futurelectric GmbH, Weissenbrunner Hauptstr. 2, 91227 Leinburg, Germany, info@lite-move.com
