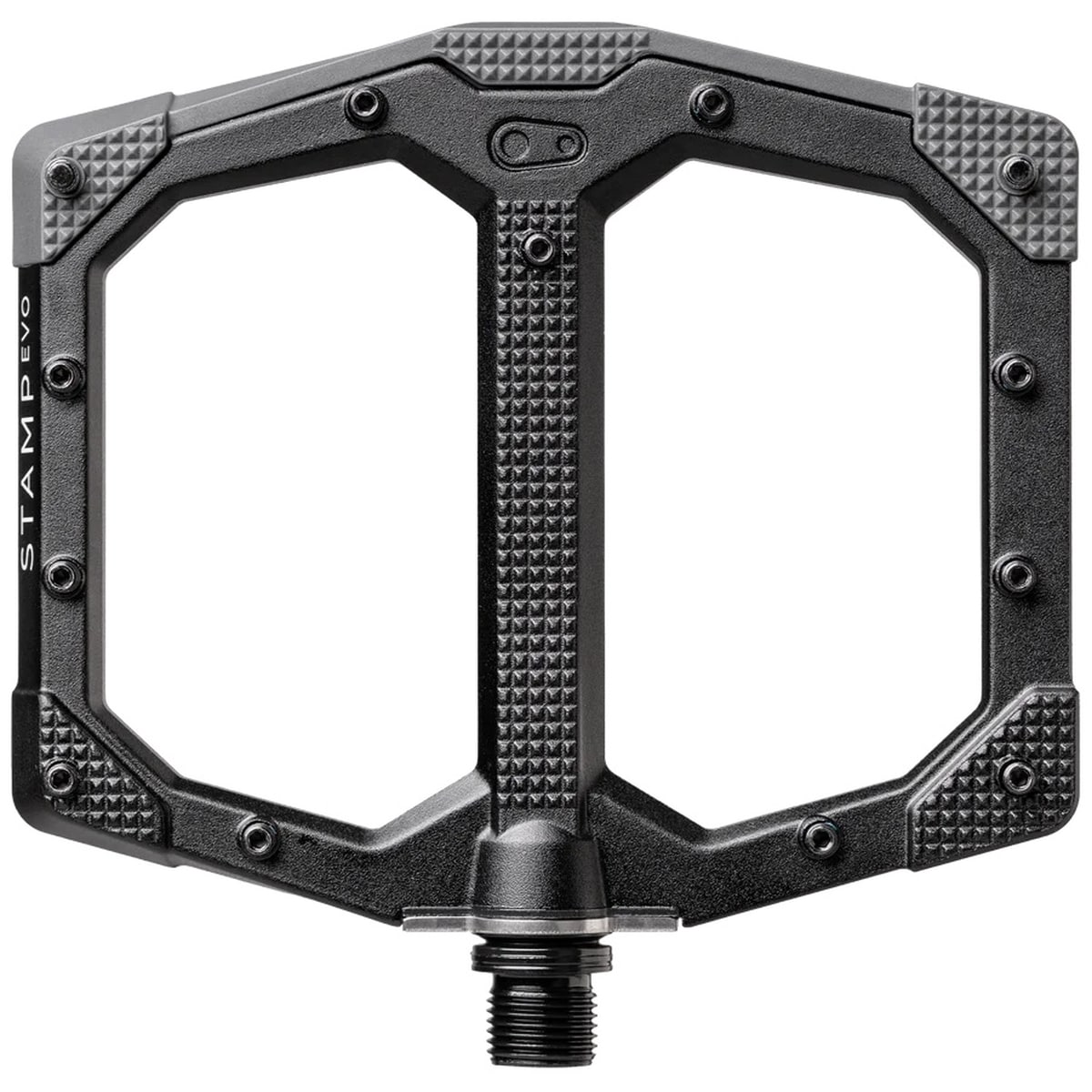

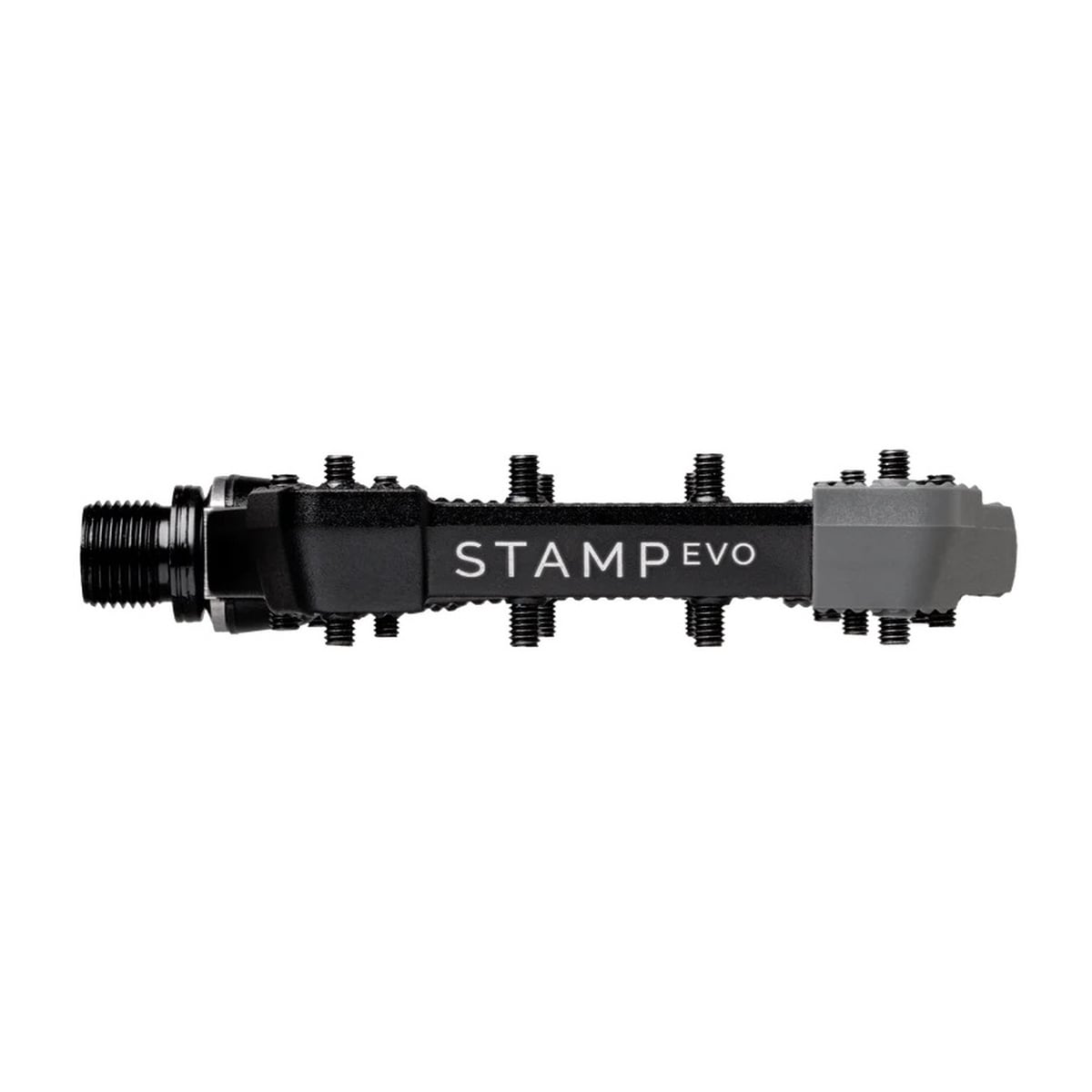

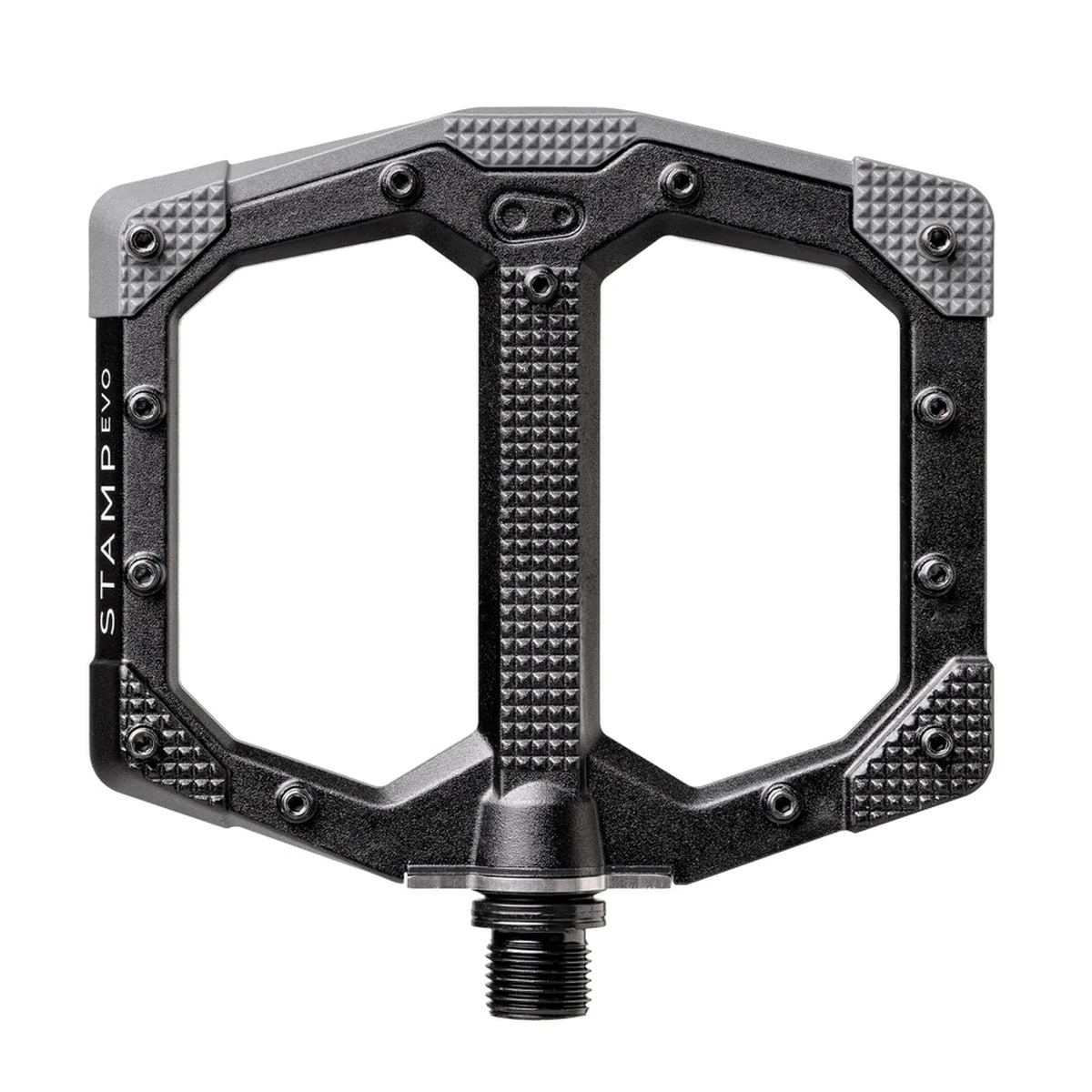

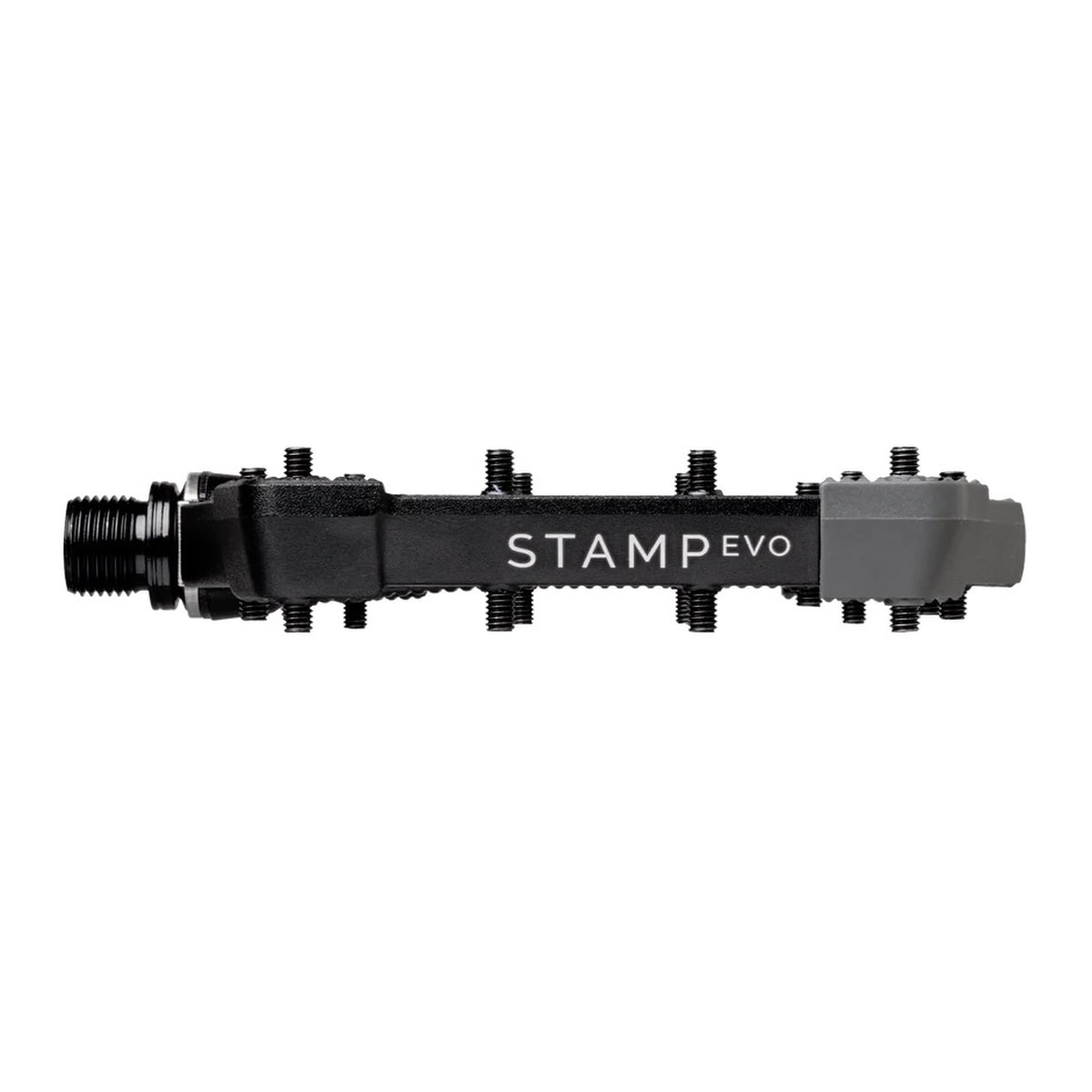

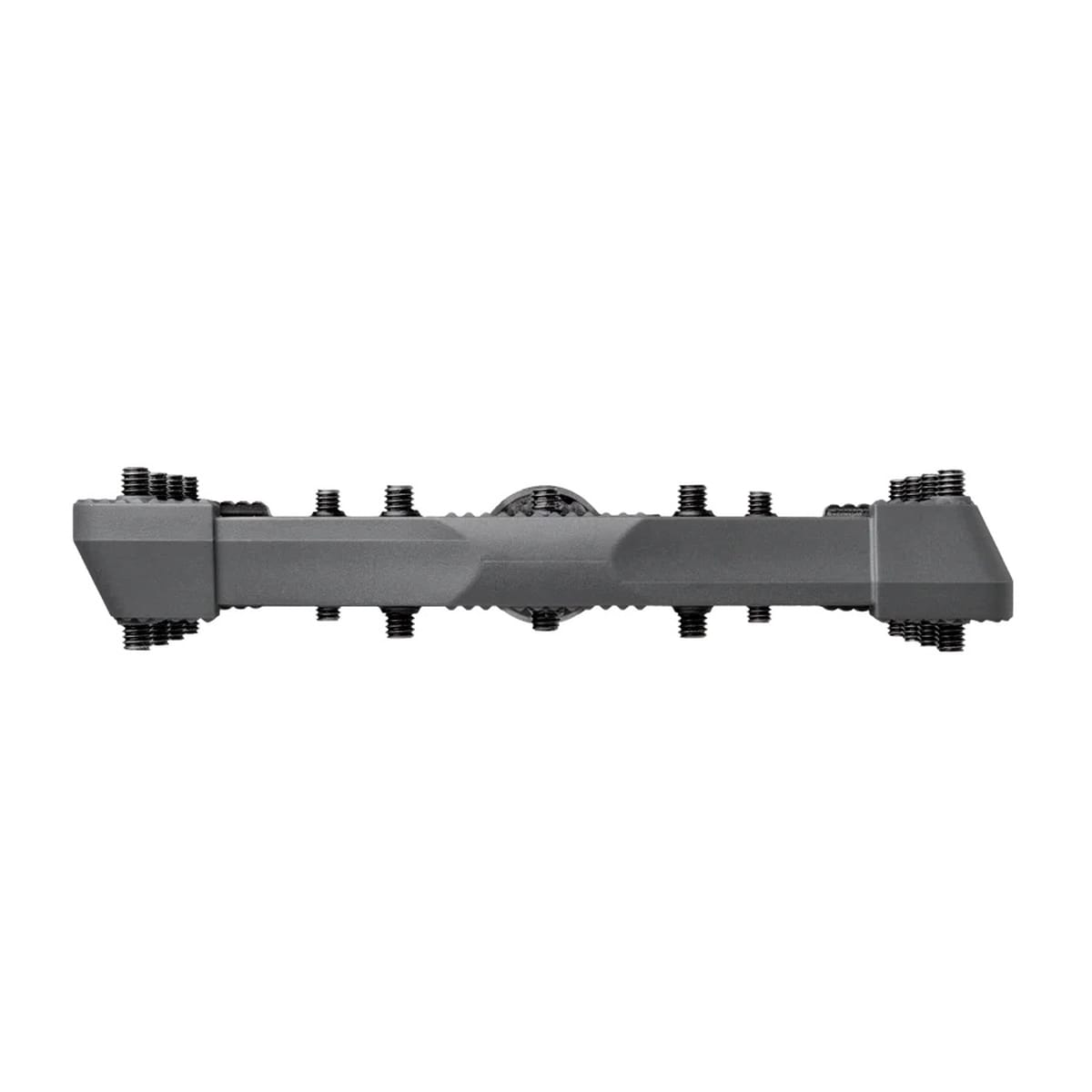

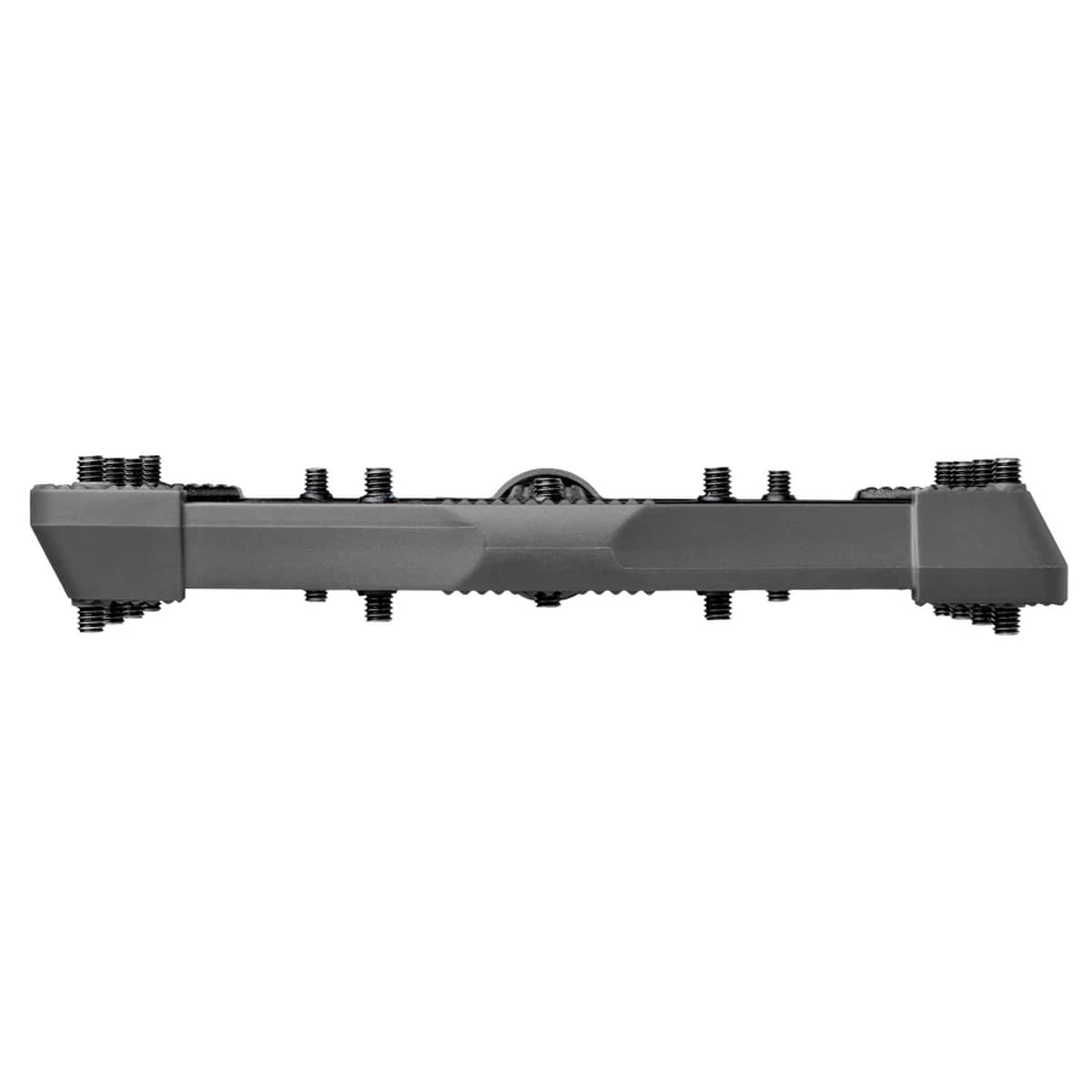

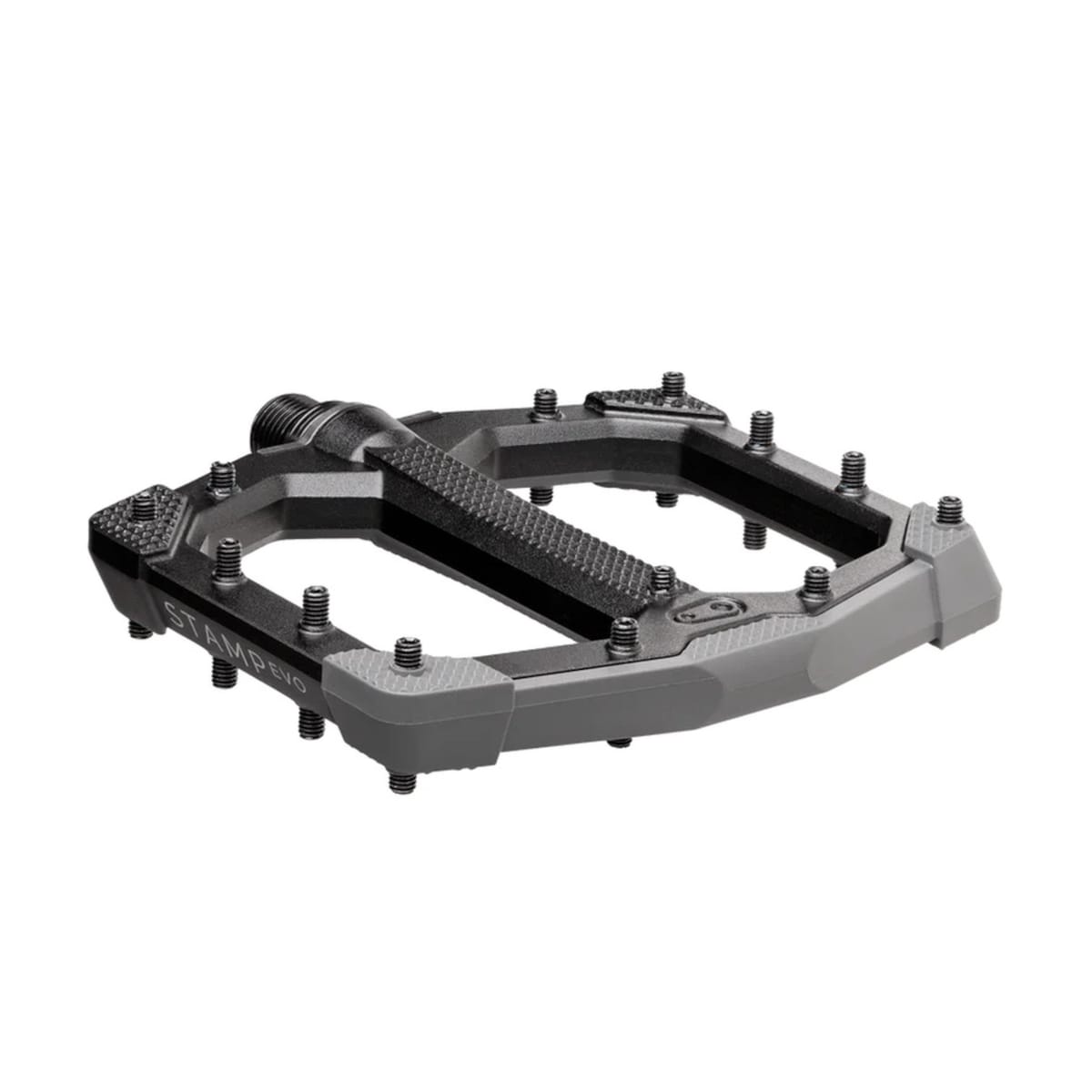

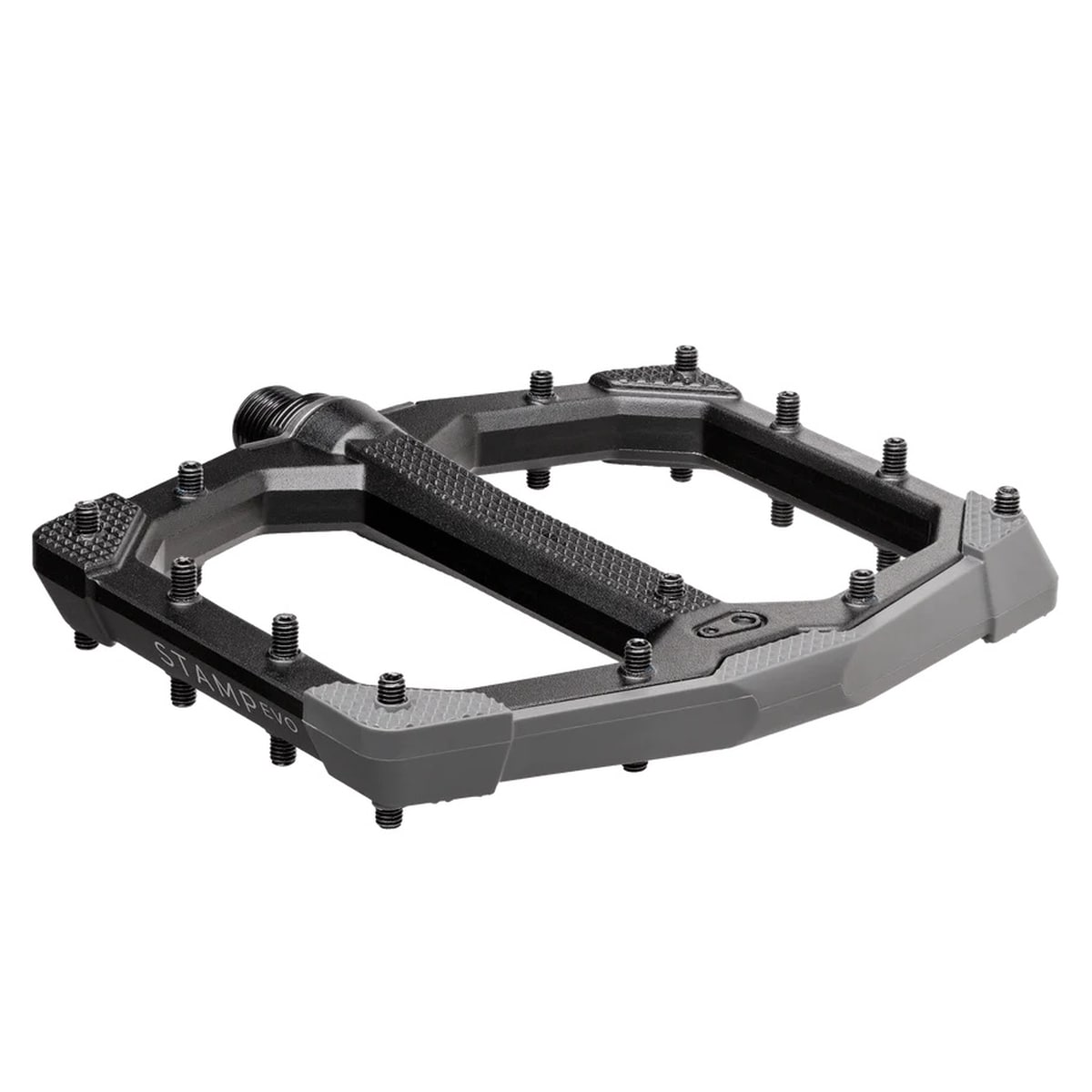

Crankbrothers Stamp Evo MTB Pedals

With the Stamp Evo platform pedal, Crankbrothers sets new standards in terms of performance and durability, seamlessly following on from the performance of the popular Stamp 7 flat pedal.
With a platform that has been extended by 20 %, the "Evolution" offers a significantly larger surface, which provides more stability and optimised grip compared to its predecessor – even on demanding terrain.

The high-quality double-material construction also combines robustness with sophisticated functionality. The interchangeable bashguards are particularly practical. After contact with rocks or obstacles, these can be easily replaced.

The Stamp Evo mountain bike pedal is an excellent choice for anyone who values control, durability and customisation options.


Details:
• High-quality flat pedal for trail, enduro, freeride and downhill use
• 20 % longer platform than Stamp 7 for more stability, better grip and less fatigue
• Two-material construction for maximum durability and reduced snagging on rock or stone contact
• Forged aluminium pedal body with replaceable bashguards
• Bashguards prevent the pedal body from getting stuck and deforming
• Flat construction height with concave pedal platform (11 – 15.5 mm) for more ground clearance and optimum grip
• High-quality bearings with IGUS LL-Glide bearings and premium sealing system
• 13 adjustable pins on each side of the pedal for maximum grip


Technical details:
• Intended use: MTB (trail, enduro, freeride and downhill)
• Material pedal body: 6061-T6 aluminium (forged)
• Material axle: cromoly steel
• Material bashguards: reinforced polyamide composite
• Bearings: IGUS LL-Glide sleeve bearings
• Pins: 26 adjustable pins (per pedal)
• Concavity: approx. 11 / 15.5 mm (approx. 2.25 mm on both sides)

Small version:
• Platform dimensions (LxW): approx. 117 x 103 mm
• Recommended shoe size: 37 – 43.5
• Weight: approx. 418 g (pair)

Large version:
• Platform dimensions (LxW): approx. 133 x 114 mm
• Recommended shoe size: 43.5 – 49
• Weight: approx. 464 g (pair)


In the box:
• 1 pair of Crankbrothers Stamp Evo MTB pedals

Tip:
Compatible replacement bashguards incl. replacement pins can be found under prod. code: 162993.
